Vanquish Products VS4-10 Currie F9 Front Axle (Silver)
Original price was: $149.99.$85.00Current price is: $85.00.
- Safe Transactions, Always
- No Compromise on Quality
- 100% Quality Promise
- Shop the Best Quality Online
The Vanquish VS4-10 Currie F9 Front Axle Assembly is officially licensed from Currie Enterprises and includes a variety of features known to improve performance and durability. The diamond shaped pumpkin houses AR44 style gears and features VP’s awesome one piece bearing retainers. Integrated c-hubs with chromoly steel, threaded c-hub inserts are replaceable. Plus an integrated pan hard mount, double sheer shock mounts and built in upper link mounts. Pair this with the Vanquish Products Currie F9 Rear Axle (VPS07853) and you have the ultimate axle combo.
NOTE:
- These axles are intended for use with a Vanquish Products VS4-10 Chassis. Clearances of the offset pumpkin require additional clearances compared to centered housings and will not function properly under many other chassis designs.
- Not for use with Vanquish Products Brass Pivot Balls (.300″ width)
- Due to the nature of the AR44 gear design, proper shimming of the pinion gear may be required for optimal results. Â
Features:
- Fully licensed by Currie Enterprises
- Comes with One Piece Bearing Retainers
- Integrated C-hub design allows for a more scale appearance
- Threaded Chromoly Steel C-hub Insert provides stronger threads that are also replaceable
- Double shear shock mounts
- Integrated Panhard mount
- Upper link mount built into the housing for added scale appearance and strengthÂ
Includes:

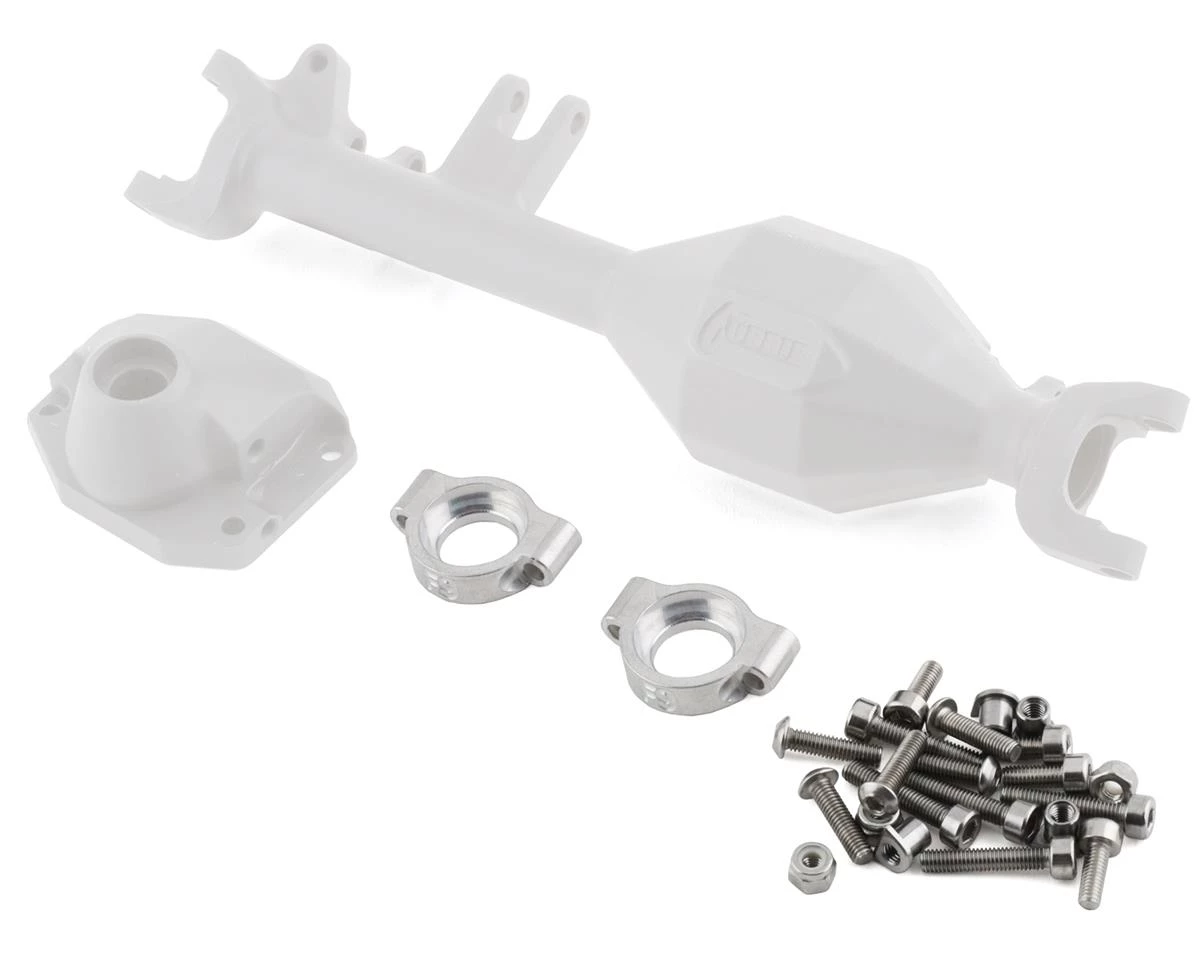

- (1) Currie Front Housing
- (2) Bearing Retainers
- (4) Threaded Inserts
- Required hardware
- Instructions
Needed to Complete:
- VDI universal axle shafts (short and long side) INCIRC00181
- Hexes, hex pins, bearings, kingpin, knuckles, ring and pinion or locker
- 0.280″ Pivot Balls and rod ends
- Required Bearings:
- (2) 7x14x3.5mm
- (1) 5x14x5mm
- (3) 5x11x4mm
This product was added to our catalog on August 10, 2022
