Vanquish Products VS4-10 Currie D44 Offset Front Axle (Black)

The Vanquish VS4-10 Currie D44 Offset Front Axle is an officially licensed Currie Enterprises RockJock 44 style front axle. The D44 variant features an offset front differential housing designed for the Incision VDI Universal Axle Shafts (IRC00181 – Sold Separately) and the one-piece bearing retainers to create an incredibly scale and durable front axle assembly. Integrated inner c-hubs provide an unmatched scale look and are strengthened to provide the most durable axle housing possible, with easily replaceable chromoly threaded inserts for the knuckle kingpin screws.

NOTE: This is not a complete axle assembly. The D44 requires hexes, hex pins, bearings, kingpin, knuckles, VDI universal axle shafts, ring and pinion gear, and locker, as well as two 7x14x3.5mm bearings, one 5x14x5mm bearing and three 5x11x4mm bearings to complete.

• Fully licensed by Currie Enterprises
• Comes with One Piece Bearing Retainers
• Integrated C-hub design allows for a more scale appearance
• Threaded Chromoly Steel C-hub Insert provides stronger threads that are also replaceable
• Double shear shock mounts
• Integrated Panhard mount
• Upper link mount built into the housing for added scale appearance and strength

• Vanquish VS4-10 Chassis Kit (VPS10130)*
• Incision 90mm shocks (IRC00210)
• Vanquish Rod Ends and Pivot Balls (.280″ width pivot balls)**
• Vanquish Products 6-Hole AR44 Gear set (VPS08330)
• Vanquish Products 6-hole AR44 Spool (VPS08070)

• *These axles are for use with a Vanquish Products VS4-10 Chassis. Clearances of the offset pumpkin require additional clearances compared to centered housings and will not function properly under many other chassis designs.
• **Not for use with Vanquish Products Brass Pivot Balls (.300″ width)
• ***Due to the nature of the AR44 gear design, proper shimming of the pinion gear may be required for optimal results.

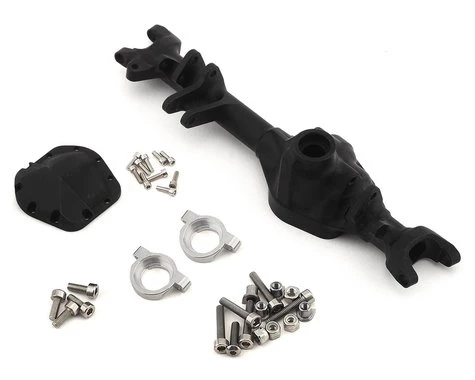

Includes:

• (1) Currie Front Housing
• (2) Bearing Retainers
• (1) Currie Diff Cover
• (4) Threaded Inserts
• Required hardware
• Instructions
