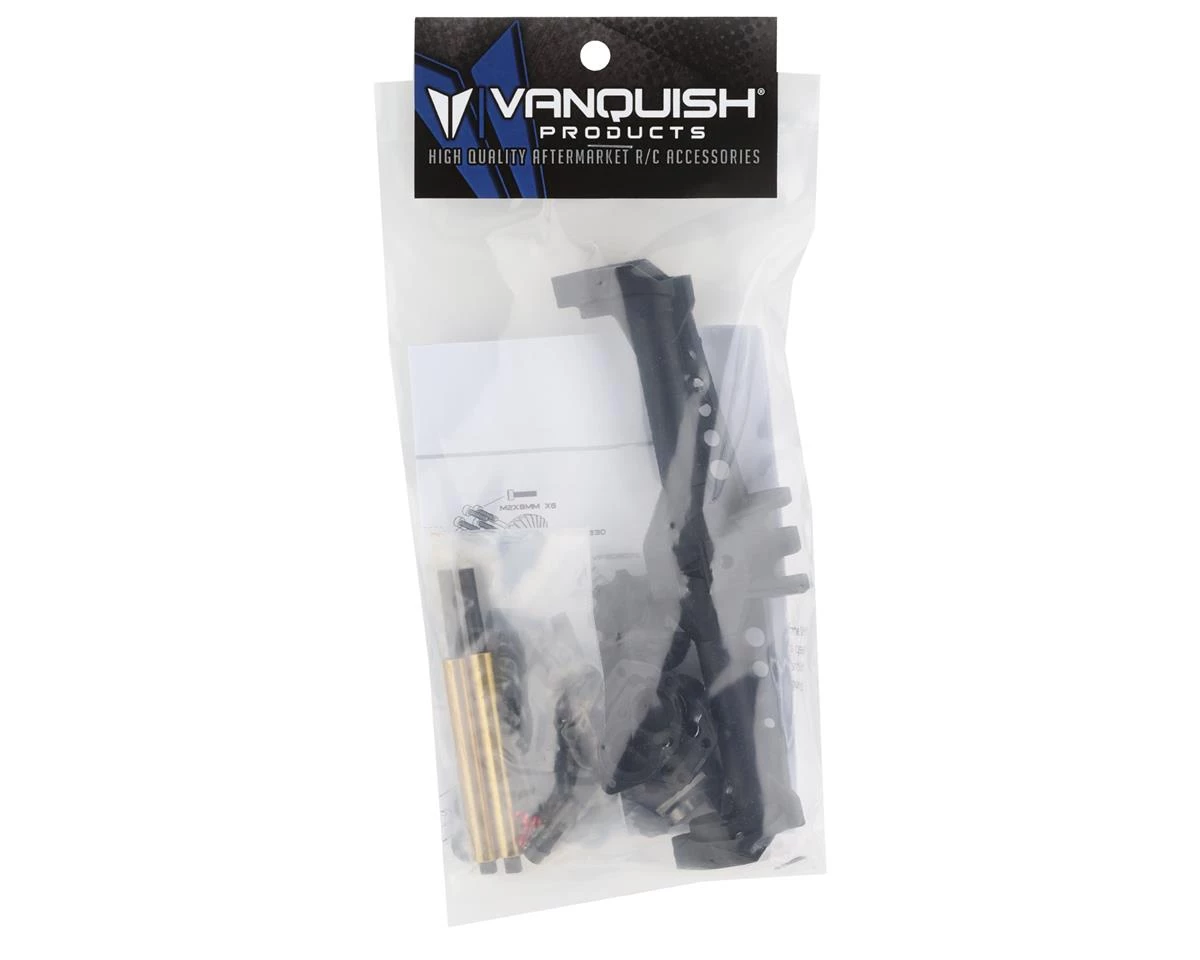

Vanquish Products F10 Portal Rear Axle Set

The Vanquish Products F10 Portal Rear Axle Set benefits from Vanquish Product’s years of design experience in making the industry’s best aluminum axles. The plastic molded F10 Portal axles feature an ultra rigid design with an integrated truss that ties both ends of the axle together, as well as brass inner reinforcement tubes to add more strength and provide some weight down low to the vehicle.

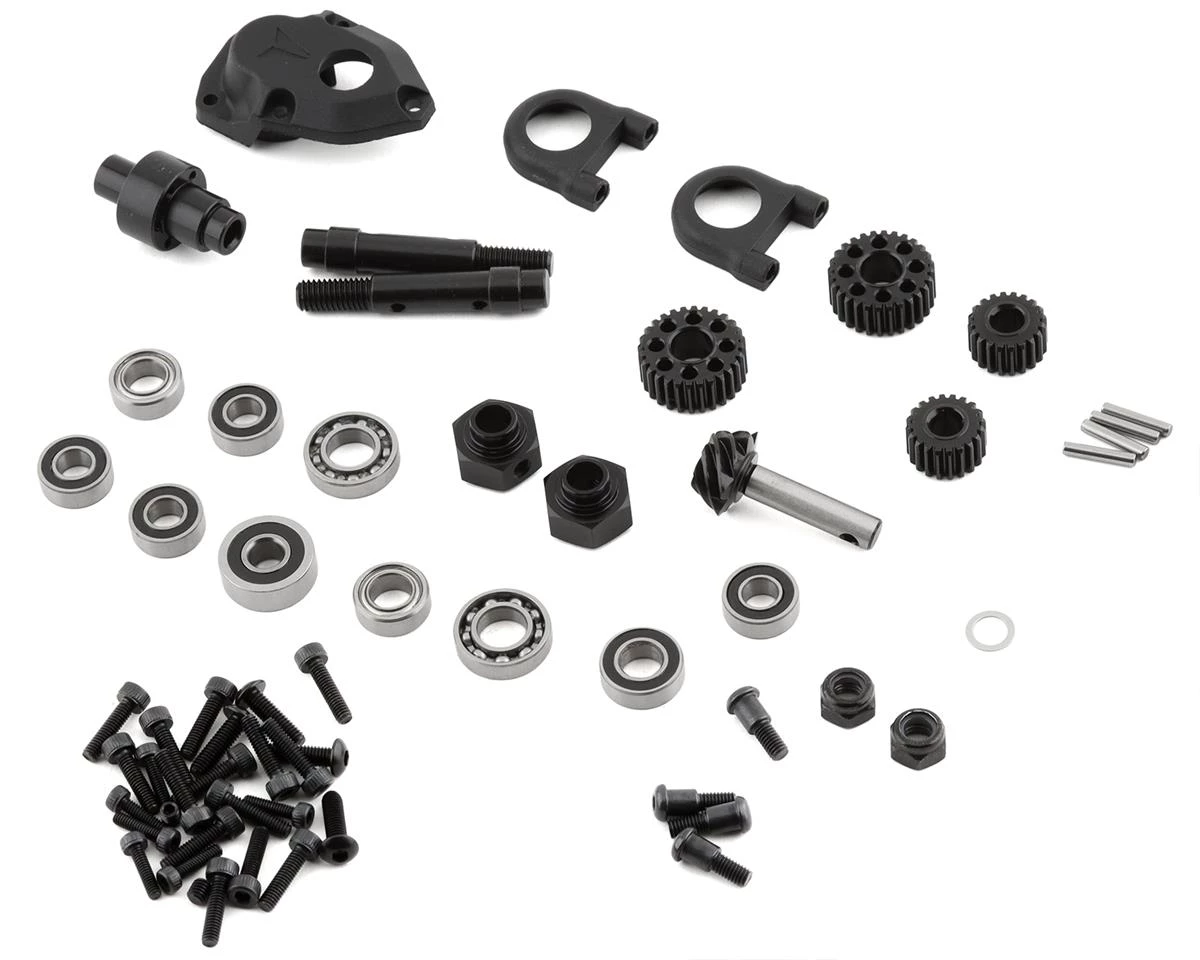

• Molded Plastic Axle housing
• 2 Upper link mount tuning positions
• Machined Chromoly Portal Gears (VPS08353)
• High-Pinion Hypoid Machined Axle Gears 30/8 (VPS08330)
• 6-Bolt Ring Gear and Spool
• 1.4:1 Portal Gear Ratio (VPS08353)
• 6mm Output shafts with M5 wheel nut
• One-Piece Molded Bearing Retainers
• Adjustable Lower Shock Mounting Position (S8E Offset Pivot Ball IRC00509)
• Chromoly axle shafts
• Brass tube inserts
• Scale removable third member
• Machined aluminum red anodized rear fill cap with molded install tool

• M5 wheel nut requires one of the following tools: IRC00142 or VPS08440
• To add overdrive in the portal gears, install VPS08354 Standard portal gears in the rear axle
• To add overdrive in the ring and pinion, install VPS08331
• Compatible with all Vanquish SLW and Incision hubs.
• Does not include link mounting hardware
• Incision .280″ width pivot ball compatible
• For use with IRC00509 S8E lower shock mount offset pivot ball at shock mount locations
